Connections

Overview

Connections define how the Prompty extension reaches an LLM provider. Each connection stores an endpoint, authentication credentials, and provider-specific settings so you can run .prompty files directly from VS Code without managing environment variables by hand.

The extension ships with built-in support for three providers:

Provider	Auth Method	Model Discovery
OpenAI	API key	✅ Lists available models via the OpenAI API
Anthropic	API key	✅ Lists available models via the Anthropic API
Microsoft Foundry	Azure AD / API key	✅ Lists deployed models from your Foundry project

You can configure multiple connections per provider and mark one as the default — the extension uses that default whenever a .prompty file doesn’t specify a connection explicitly.

---

How Connections are Stored

Connection profiles are saved to a .prompty/connections.json file in your workspace root. Secrets (API keys, tokens) are stored separately in VS Code’s SecretStorage — they never appear in the JSON file on disk.

A typical connections.json looks like this:

.prompty/connections.json

{
  "openai-dev": {
    "provider": "openai",
    "endpoint": "https://api.openai.com/v1",
    "isDefault": true
  },
  "azure-prod": {
    "provider": "foundry",
    "endpoint": "https://my-resource.services.ai.azure.com/api/projects/my-project",
    "isDefault": false
  }
}

Each key is the connection name you chose during setup. The isDefault flag controls which connection is used when multiple connections exist for the same provider.

Caution

Add .prompty/ to your .gitignore to keep connection profiles out of source control. Even though secrets are stored in SecretStorage, the endpoint URLs and connection names may be sensitive.

Note

SecretStorage keys follow the pattern prompty-connection-<name>. When you delete a connection, the extension removes both the JSON entry and the corresponding secret.

---

Adding a Connection

Open the Connections panel in the sidebar and click the + button (or run the Prompty: Add Connection command from the Command Palette). The extension walks you through a four-step wizard:

1. Pick a provider — OpenAI, Anthropic, or Microsoft Foundry
2. Enter a name — a short label for this connection (e.g. openai-dev)
3. Provide credentials — endpoint URL and API key (or Azure AD for Foundry)
4. Test (optional) — the wizard offers to test the connection before saving

After the wizard completes, the connection appears in the sidebar and is ready to use.

OpenAI

Wizard Steps

Step	Field	Required	Default
1	Connection name	✅	—
2	API key	✅	—
3	Endpoint	❌	https://api.openai.com/v1
4	Model	❌	gpt-4o

Example

Connection name: my-openai
API key: sk-...
Endpoint: (leave default)
Model: gpt-4o-mini

Tip

After adding the connection, expand it in the sidebar to see the Models section. The extension calls models.list() to discover all available models on your account.

Anthropic

Wizard Steps

Step	Field	Required	Default
1	Connection name	✅	—
2	API key	✅	—
3	Endpoint	❌	https://api.anthropic.com
4	Model	❌	claude-sonnet-4-6

Example

Connection name: my-anthropic
API key: sk-ant-...
Endpoint: (leave default)
Model: claude-sonnet-4-6

Microsoft Foundry

Microsoft Foundry connections use Azure AD authentication instead of API keys. The extension obtains a bearer token via DefaultAzureCredential, so you must be logged in to Azure (e.g., via the Azure CLI or the VS Code Azure Account extension).

Wizard Steps

Step	Field	Required	Default
1	Connection name	✅	—
2	Project endpoint	✅	—
3	Foundry connection name	❌	—
4	Tenant ID	❌	—

Example

Connection name: my-foundry
Project endpoint: https://my-project.services.ai.azure.com
Foundry connection name: (leave blank for default)
Tenant ID: (leave blank for default)

Note

The project endpoint must be the full Foundry project URL, starting with https://. You can find this in the Azure portal under your AI Foundry project’s Overview page. Model discovery calls the deployments endpoint to list deployed models.

---

Testing a Connection

Right-click any connection in the sidebar and select Test Connection, or click the plug icon that appears inline. You can also run Prompty: Test Connection from the Command Palette. The extension runs a lightweight check for each provider:

Provider	What the test does	On success
OpenAI	Calls models.list()	Reports latency
Anthropic	Sends a minimal messages request	Reports HTTP 200
Foundry	Authenticates with Azure AD, calls deployments endpoint	Reports deployment count and credential source

After the test, the connection’s status icon updates in the sidebar:

• ✅ Connected — all checks passed
• ❌ Failed — one or more checks failed (hover for details)

Tip

If a connection test fails, double-check your API key and endpoint URL. For Foundry connections, make sure your Azure account has the correct role assignment on the AI Foundry project.

---

Editing a Connection

To update an existing connection, right-click it in the Connections panel and select Edit Connection (or run Prompty: Edit Connection from the Command Palette).

The wizard reopens with your current settings pre-filled. You can change any field — name, endpoint, or credentials. When you save:

• The profile in .prompty/connections.json is updated
• If you changed the secret (API key), the old SecretStorage entry is replaced
• The isDefault flag is preserved unless you explicitly change it

Tip

Use Edit Connection to rotate API keys — the new key replaces the old one in VS Code’s SecretStorage without affecting the rest of the connection configuration.

Note

Editing a connection does not interrupt any running prompts. The updated credentials take effect on the next execution.

---

Deleting a Connection

Right-click a connection in the sidebar and select Delete Connection, or run Prompty: Delete Connection from the Command Palette.

Deleting a connection removes both:

1. The profile entry from .prompty/connections.json
2. The associated secret from VS Code’s SecretStorage

Caution

Deletion is permanent — there is no undo. If the deleted connection was the default for its provider, you’ll need to set a new default before running prompts that rely on that provider.

---

Setting a Default

When you have multiple connections for the same provider, you can mark one as the default. Right-click a connection and select Set as Default, or click the star icon. The default connection is set per provider type — you can have one default OpenAI connection and one default Foundry connection simultaneously.

The extension resolves which connection to use in this order:

Priority	Source	Example
1	Frontmatter model.connection	Explicit endpoint + key in the .prompty file
2	Provider default	The default connection for the provider named in model.provider
3	Any default	Falls back to any connection marked as default

The status bar at the bottom of the VS Code window shows your current default connection — click it to quickly switch defaults.

Tip

You can set a different default per provider. For example, keep an OpenAI default for gpt-4o prompts and a Foundry default for Azure-deployed models — the extension picks the right one based on model.provider in each .prompty file.

---

Model Discovery

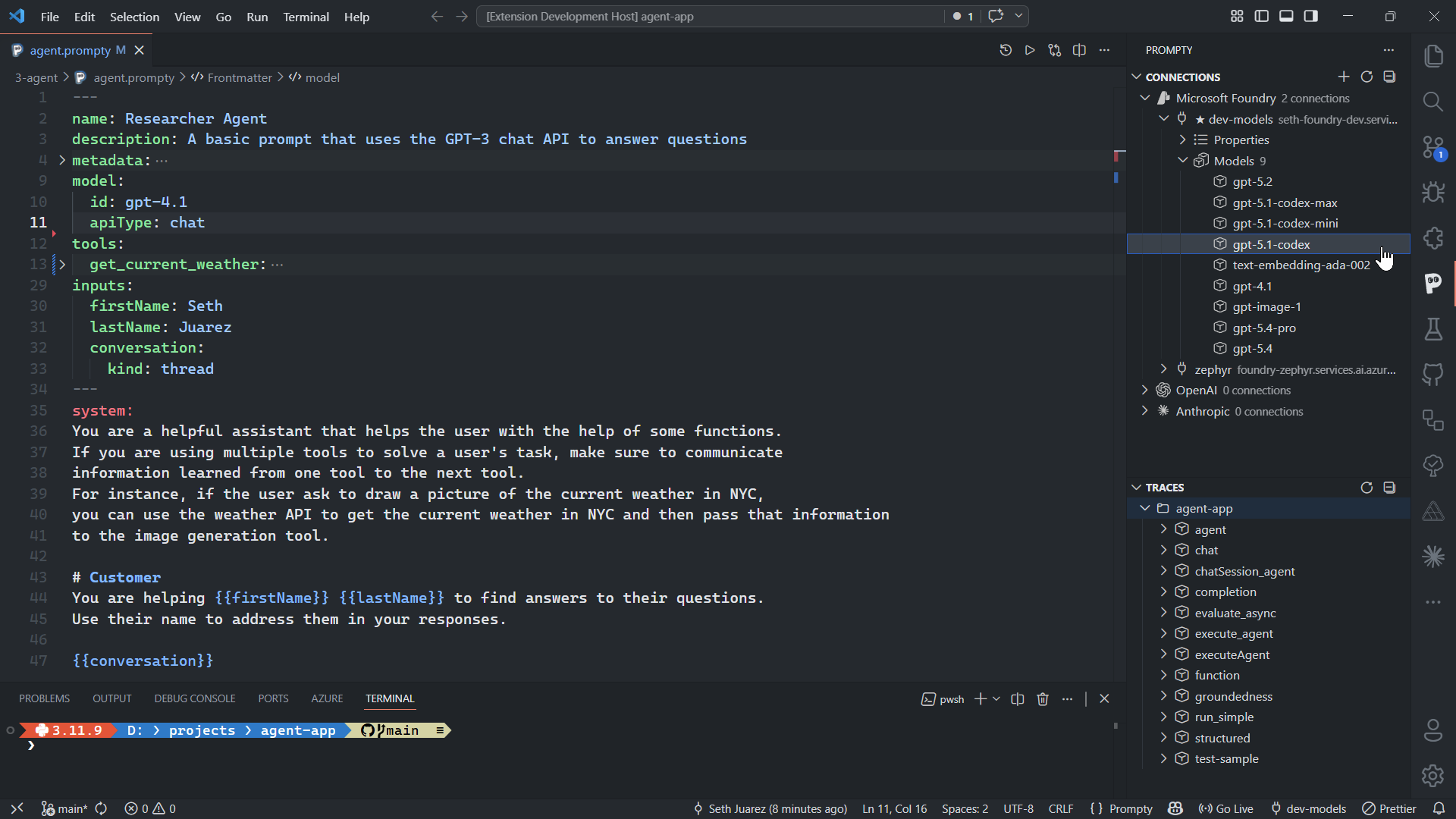

Expand any connection in the Connections panel to reveal a Models section. The extension queries the provider’s API and lists all models available under that connection.

• OpenAI — lists all models your API key has access to
• Anthropic — lists available Claude model variants
• Microsoft Foundry — lists models deployed in your Foundry project

Model IDs from this list are what you use in the model.id field of your .prompty frontmatter:

model:
  id: gpt-4o          # ← model ID from the discovery list
  provider: openai

Click the refresh icon next to the Models heading to re-fetch the model list (for example, after deploying a new model to your Foundry project). The language server also uses discovered models to offer completions when you type model.id in a .prompty file.

Note

Model discovery requires a working connection. If the connection hasn’t been tested or has expired credentials, test it first to refresh authentication before expanding the models list.

---

Refreshing Connections

Click the refresh button in the Connections panel toolbar to reload all connections from disk and re-authenticate with each provider.

This is useful when:

• You edited .prompty/connections.json outside of VS Code
• An API key or Azure AD token has expired and needs re-acquisition
• You switched Azure accounts and want to pick up the new credentials
• Another workspace tool modified the connections file

The refresh re-reads connections.json, re-validates secrets in SecretStorage, and updates the sidebar tree. Any connection whose credentials are no longer valid will show a failed status icon.

Tip

The extension also watches .prompty/connections.json for file changes and refreshes automatically. The manual refresh button is a fallback for cases where the file watcher doesn’t pick up external edits.
